Motic S-Plan Semi-Planachromatic Objective Lens Series — Precision Optics for Motic B-Series Microscopes
Motic S-Plan Semi-Planachromatic Objective Lens Series — Precision Optics for Motic B-Series Microscopes
- Semi-Planachromatic Optics: Provides flat, distortion-free imaging with precise color correction across the entire field of view.
- Precision Engineering: Manufactured from premium optical glass and housed in durable, corrosion-resistant metal for long-term laboratory performance.
- Standard RMS Thread Compatibility: Universally fits all Motic B-Series and other RMS-standard microscopes for flexible integration.
- Enhanced Safety Design: Spring-loaded front lenses on higher magnifications protect both specimen and objective during focusing.
- Comprehensive Magnification Range: Available from low-power scanning (4X) to high-resolution oil immersion (100X) for diverse microscopy applications.
The Motic S-Plan Objective Lens Series delivers exceptional clarity, flat-field correction, and color accuracy for educational, clinical, and research microscopy. Each lens is engineered for sharp, high-contrast imaging across the entire field of view and is fully compatible with Motic B-Series microscopes.

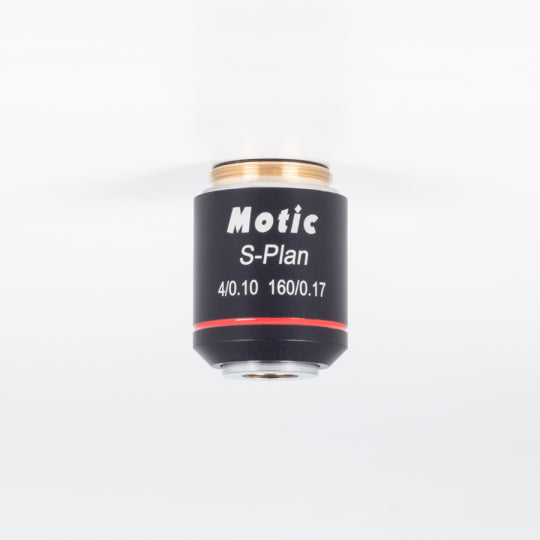

S-Plan 4X Objective (NA 0.10, W.D. 17.9 mm) — Low-power scanning lens providing bright, wide-field imaging for quick specimen location and overview. Perfect for classroom and industrial inspection use.

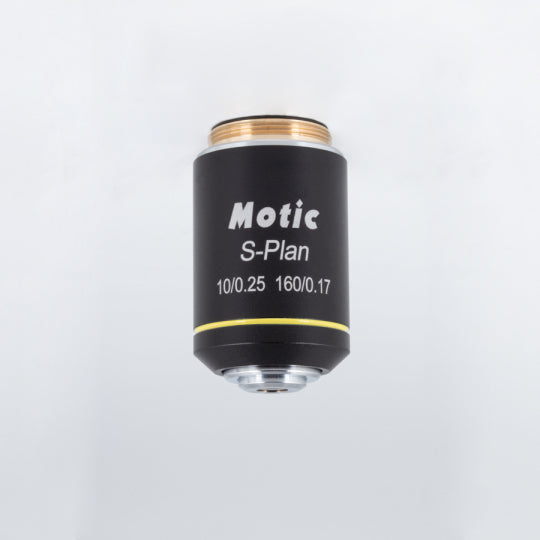

S-Plan 10X Objective (NA 0.25, W.D. 5.3 mm) — Ideal for general biological observation and cell studies, combining balanced magnification with excellent color fidelity and flat-field correction.
S-Plan 40X Objective (NA 0.45, W.D. 0.2 mm, Spring-Loaded) — High-precision lens for detailed viewing of tissues and microorganisms. Spring-loaded design protects both lens and specimens during fine focusing.

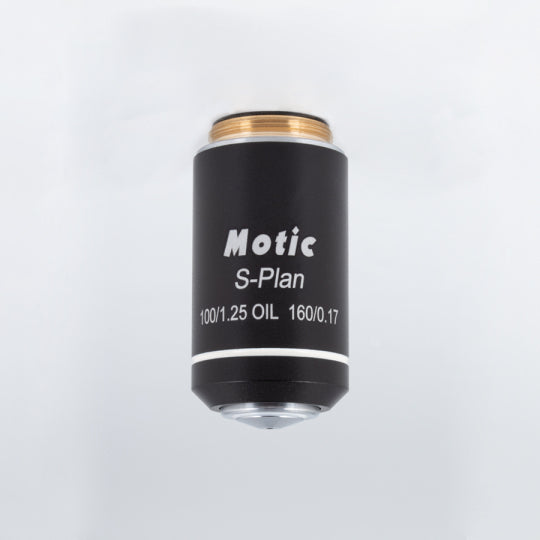

S-Plan 100X Oil-Immersion Objective (NA 1.25, W.D. 0.165 mm, Spring-Loaded) — Professional-grade high-power lens delivering maximum resolution for subcellular structures when used with immersion oil.
Together, these semi-planachromatic objectives form a complete optical solution for laboratories and institutions seeking superior imaging performance with the reliability and precision of Motic engineering.
