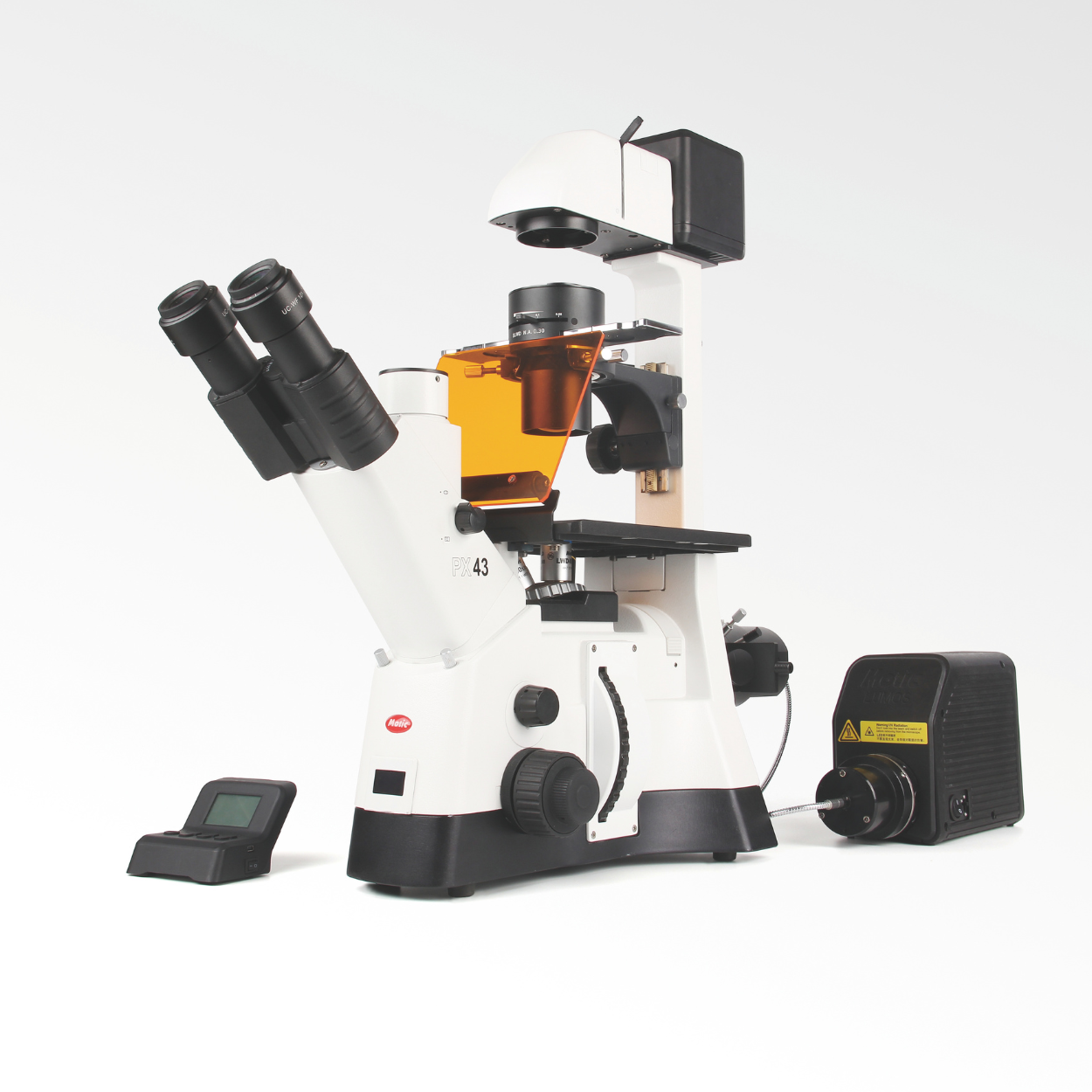

Motic PX43 FS6 Fluorescence Microscope with LUMOS FL LED UC Fluor | Trinocular Phase Contrast Microscope for Cell Culture & Research
Motic PX43 FS6 Fluorescence Microscope with LUMOS FL LED UC Fluor | Trinocular Phase Contrast Microscope for Cell Culture & Research
-
Advanced LUMOS FL LED UC Fluor System – Provides bright, uniform fluorescence illumination with minimal photobleaching.
Coded 5+1 Filter Turret – Includes DAPI, FITC, and TRITC filters for versatile fluorescence imaging and metadata traceability.
Ergonomic Trinocular Design – 45° inclined, 360° rotatable head ensures comfortable long-term viewing.
Smart Objective Detection – 5-hole coded turret automatically identifies and displays magnification data in imaging software.
Flexible Light Source Options – Supports LUMOS3 LED, LUMOS X metal halide, or traditional mercury lamps for adaptable workflows.
Large Working Distance (72mm) – Ideal for cell culture dishes and live-cell imaging environments.
Experience advanced fluorescence microscopy with the Motic PX43 FS6 — engineered for precision, clarity, and comfort.
This professional-grade research microscope combines powerful imaging capabilities with ergonomic design to meet the demanding needs of cell culture, fluorescence observation, and routine lab research. Equipped with LUMOS FL LED UC Fluor technology, the PX43 FS6 delivers exceptional fluorescence illumination while ensuring user safety and efficiency.
Enhanced Fluorescence Performance
The PX43 FS6 features a coded 5+1 filter turret with pre-installed DAPI, FITC, and TRITC filters, supporting up to five fluorescence channels and one brightfield channel. Its intelligent coded fluorescence system automatically synchronizes filter data for accurate imaging and traceability — making it ideal for multi-channel fluorescence analysis and teaching applications.
Flexible Light Source Options
Choose between LUMOS3 (LED light source) and LUMOS X (metal halide) for optimal illumination.
LUMOS3: Maintenance-free LED source with up to 20,000-hour lifespan, minimal phototoxicity, and independent channel control.
LUMOS X: High-intensity metal halide lamp with adjustable brightness, a 3,000-hour lifespan, and a rapid 90-second warm-up.
Ergonomic & Efficient Design
Designed with user comfort in mind, the 360° rotatable Siedentopf trinocular tube and wide-field FN23 eyepieces reduce strain during extended sessions. The large 72mm working distance condenser provides ample space for culture dishes, while the 10W LED or 50W halogen transmitted light options ensure optimal brightness for any application.
Smart Objective Recognition
The coded 5-hole objective turret automatically detects magnification changes and logs image metadata — streamlining workflow and ensuring precise documentation.
Equipped with Plan UC LWD objectives (4x/0.1 Ph0, 10x/0.3 Ph1, 20x/0.45 Ph1), the PX43 FS6 captures every detail across a broad range of magnifications.
Built for Advanced Research
From phase contrast to fluorescence imaging, this modular system provides researchers with unparalleled flexibility and optical precision. Whether in academic teaching, pathology, or biomedical research, the Motic PX43 FS6 stands out for its reliability, performance, and intelligent automation.
