Motic Plan UC Achromatic Objective Lens Series — Precision Optics for Panthera Microscopes
Motic Plan UC Achromatic Objective Lens Series — Precision Optics for Panthera Microscopes
- Full Range of Magnifications (2X–100X): Offers a complete selection of objective powers, from wide-field scanning to high-resolution cellular analysis.
- Plan Achromatic Optics: Delivers flat, color-corrected images with sharp, uniform clarity across the entire field of view.
- CCIS® Infinity Optical System: Optimized for Motic Panthera Series Microscopes (C2, E2, Cloud) for superior imaging and easy interchangeability.
- High Numerical Aperture & Working Distance: Provides NA values from 0.05 to 1.25 and working distances from 0.16mm to 30.5mm for versatile imaging applications.
- Spring-Loaded & Oil Immersion Options: Available with safety mechanisms and oil immersion optics for advanced precision and specimen protection.
- Durable, Lead-Free Construction: Built with metal housings and eco-friendly optical glass for reliable use in educational, clinical, and research environments.
The Motic Plan UC Series of achromatic objectives delivers high-clarity, flat-field, and color-corrected imaging for Panthera microscopes (C2, E2, and Cloud models). Designed for educational, clinical, and research applications, each lens offers reliable optical performance and ergonomic working distances to suit a wide range of microscopy tasks.

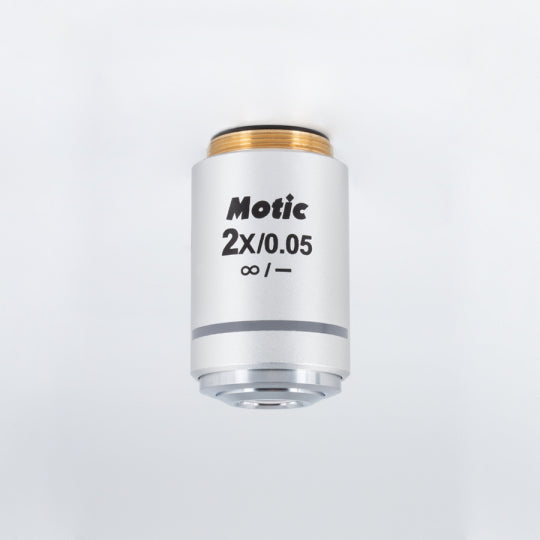

2X / 0.05 NA | W.D. 7.2 mm — Low-power objective for scanning and large-specimen observation. Provides bright, distortion-free images with ample clearance for slide manipulation.

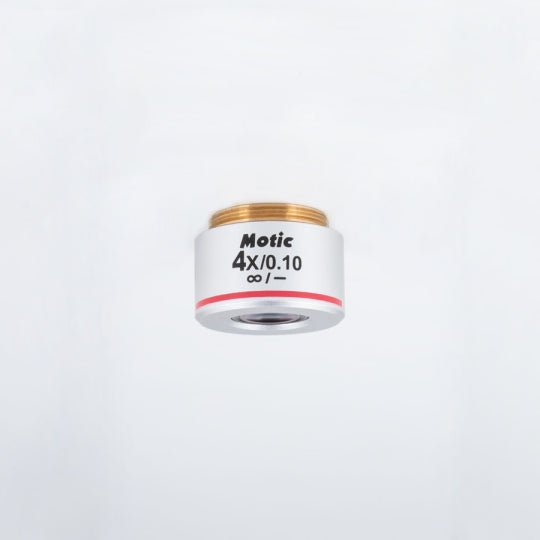

4X / 0.10 NA | W.D. 30.5 mm — Exceptional low-magnification clarity and depth of field for full-slide viewing and sample orientation. Ideal for classrooms and inspection.

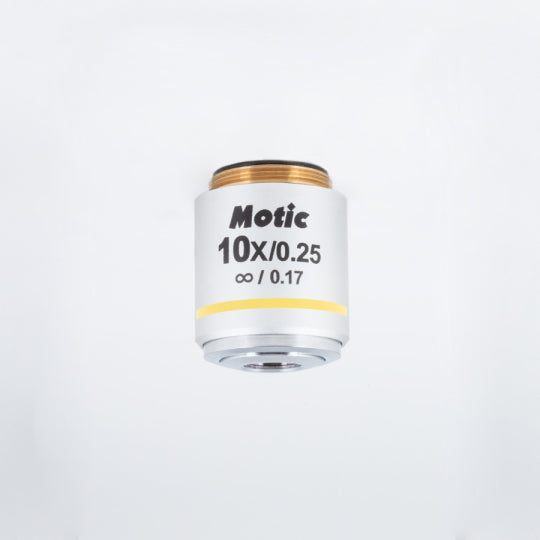

10X / 0.25 NA | W.D. 17.4 mm — Balanced magnification and resolution for general biological or material samples. Offers excellent color accuracy and wide field flatness.

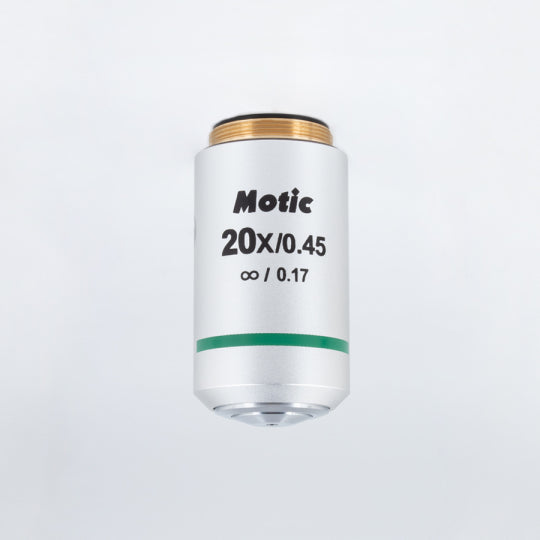

20X / 0.45 NA | W.D. 0.8 mm — High-precision lens for detailed analysis of cells, tissues, and microstructures. Produces sharp, high-contrast images.

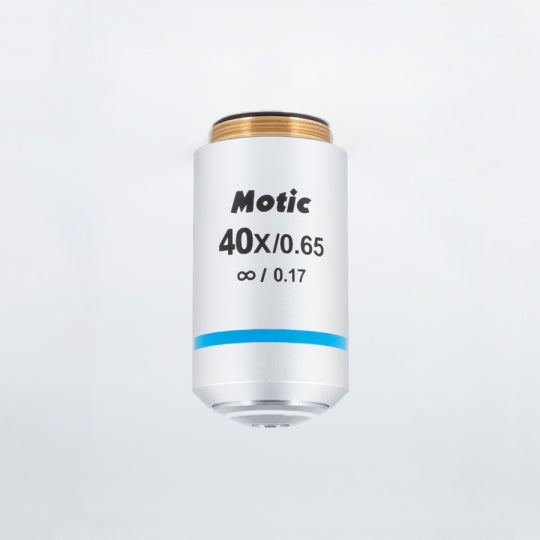

40X / 0.65 NA | W.D. 0.6 mm, Spring-Loaded — Mid-to-high magnification with specimen protection via spring-loaded front lens. Ideal for fine detail imaging.

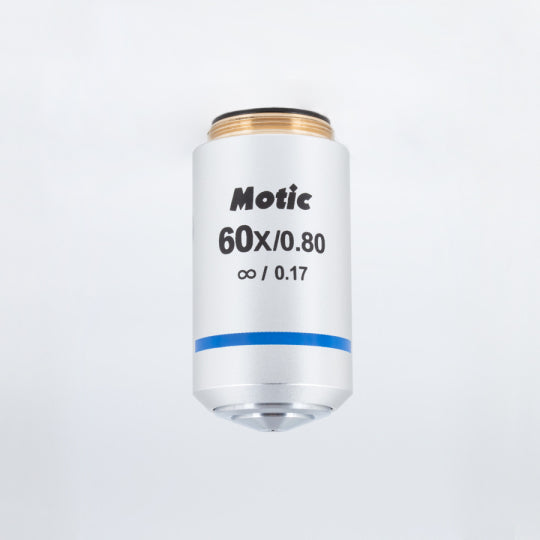

60X / 0.80 NA | W.D. 0.35 mm, Spring-Loaded — Extended magnification with superior contrast and safety for delicate slides during close focusing.

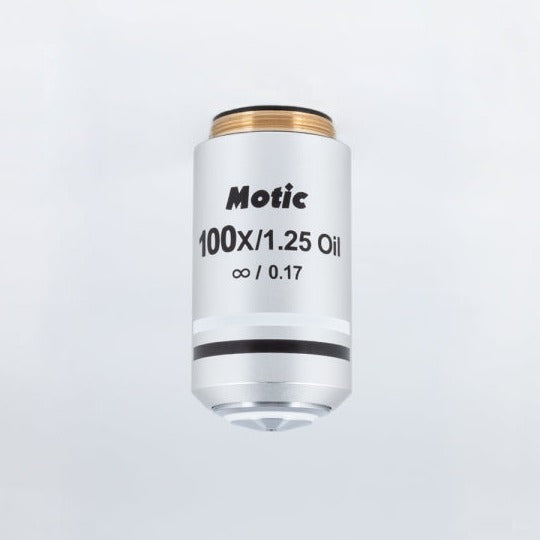

100X / 1.25 NA Oil | W.D. 0.16 mm, Spring-Loaded — Oil immersion objective for maximum resolution and optical precision. Produces flat, high-contrast images for advanced microscopy.

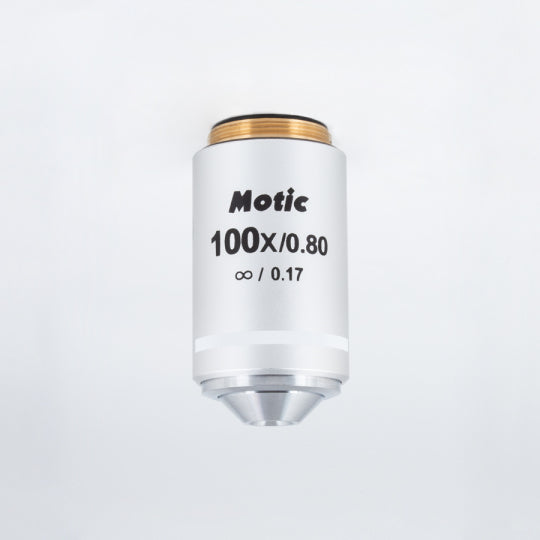

100X / 0.80 NA Dry | W.D. 1.7 mm, Spring-Loaded — Combines high power and convenience with a dry-use design—no immersion oil needed, minimizing cleanup and downtime.
Each Motic Plan UC objective is precision-engineered for Panthera microscopes, ensuring seamless compatibility and superior image quality across magnifications.
