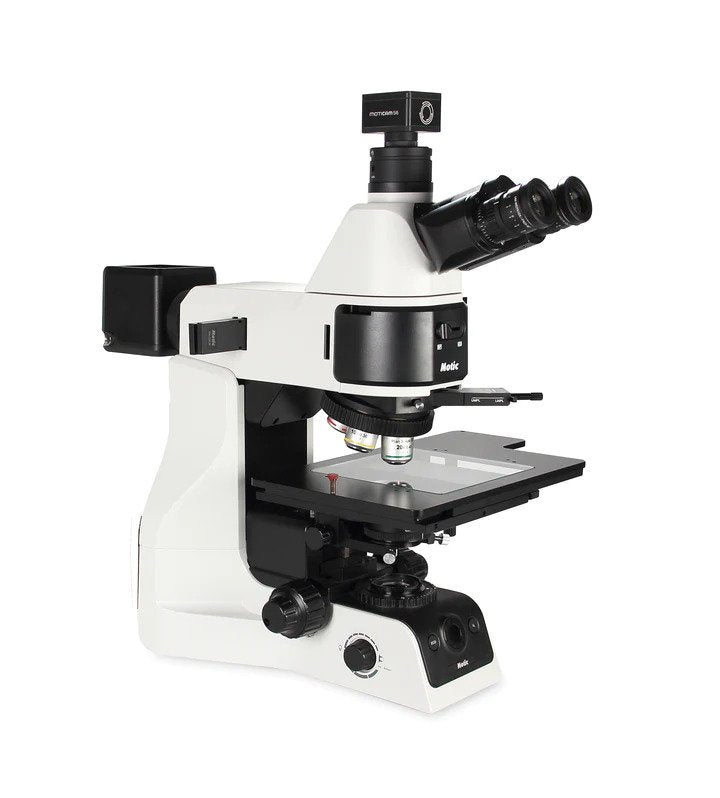

Motic PA53MET Metallurgical Microscope Series – Advanced Reflected, Transmitted & 3D Imaging Solutions
Motic PA53MET Metallurgical Microscope Series – Advanced Reflected, Transmitted & 3D Imaging Solutions
- CCIS® Infinity Optical System: Delivers crisp, color-accurate, and distortion-free imaging for surface inspection, metallography, and material analysis.
- Plan S-APO & BD Objectives (5×–50×): Achromatic, flat-field lenses ensure superior contrast, resolution, and edge-to-edge clarity in both brightfield and darkfield observation.
- Dual Illumination (Reflected + Transmitted): Supports opaque and transparent specimens with switchable brightfield/darkfield reflected lighting and precision light control.
- 100W High-Intensity Halogen Illumination: Provides powerful, even lighting with coded nosepiece and DIC compatibility for enhanced surface detail and coating evaluation.
- Motorized Z-Axis Control: Enables automated 3D profiling, focus stacking, and depth mapping for high-precision industrial metrology.
- Integrated Imaging & Analysis: Includes Moticam S6 6.3MP digital camera and Motic Analysis Professional software for accurate x/y/z measurement and documentation.
- Modular, Upgrade-Ready Design: Supports transmitted light, DIC, and fluorescence attachments, making it adaptable for research and advanced inspection applications.
The Motic PA53MET Series represents the pinnacle of metallurgical and material analysis microscopy, designed for precision imaging, industrial inspection, and research-level applications.
Powered by Motic’s CCIS® Infinity-Corrected Optical System and Plan S-APO objectives, each configuration ensures exceptional resolution, flatness, and color accuracy across magnifications from 5× to 50×. A robust 100 W halogen illumination system with Koehler lighting provides brilliant, uniform brightness ideal for metal, ceramic, and composite samples.
PA53MET – Reflected Light model for high-contrast imaging of opaque surfaces; ideal for metallography, coating, and weld inspection.
PA53MET-T – Adds transmitted illumination for transparent or semi-transparent samples such as thin films or layered composites.
PA53MET-BD – Features Brightfield/Darkfield reflected illumination for detecting micro-defects, surface textures, and grain boundaries.
PA53MET-3D – Integrates a motorized Z-axis and 3D profiler with Motic Analysis Professional Software for quantitative surface metrology and 3D visualization.
All models include a trinocular FN25 head for digital imaging, coded quintuple nosepiece for repeatable optical settings, and a precision mechanical stage for smooth, stable navigation.
Engineered for R&D, quality control, and advanced education, the PA53MET Series combines modular expandability, software integration, and ergonomic design to deliver the ultimate in clarity, reliability, and research flexibility.
