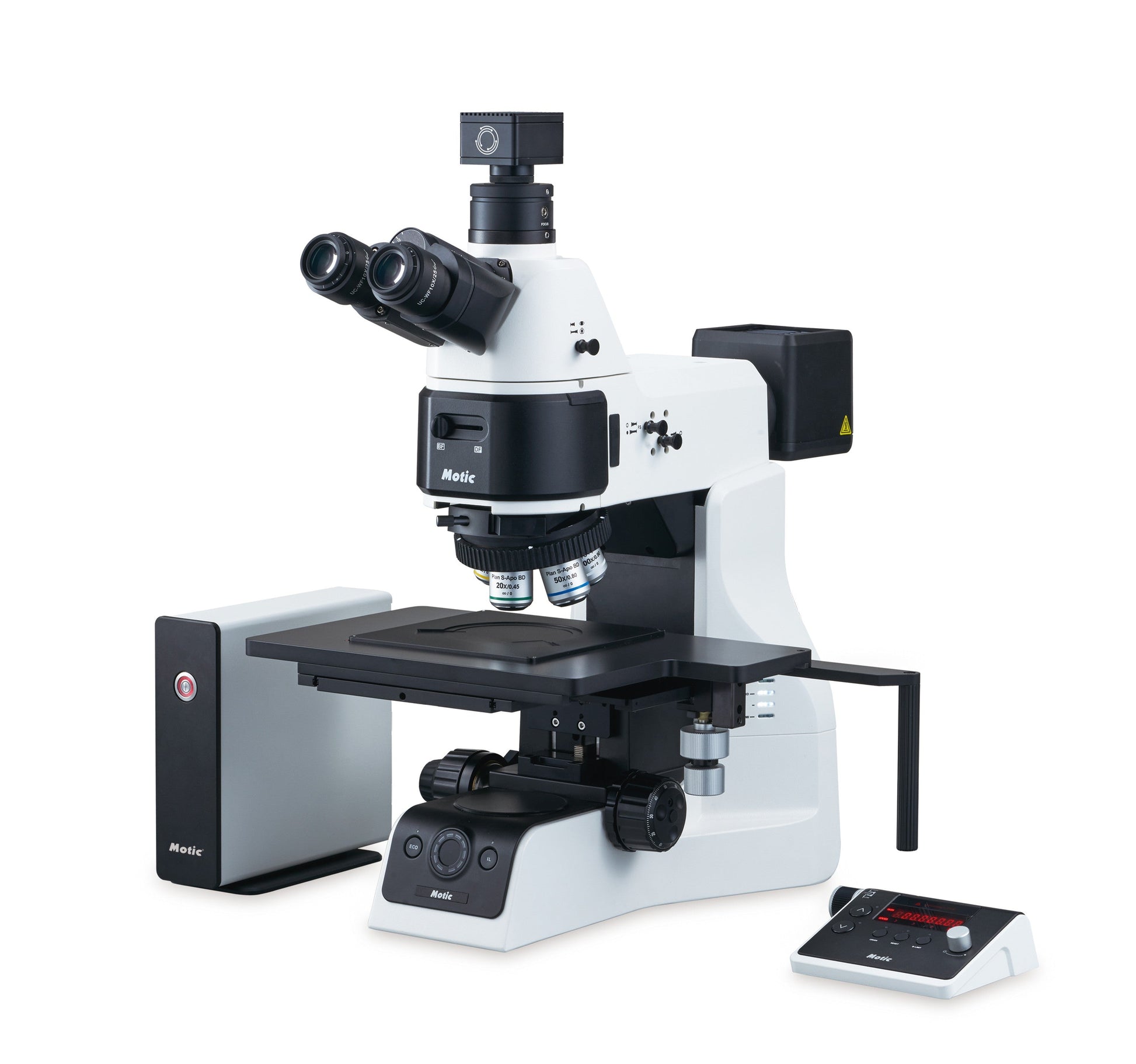

Motic PA53MET-BD 3D & T Series — Advanced Brightfield/Darkfield Metallurgical Microscopes
Motic PA53MET-BD 3D & T Series — Advanced Brightfield/Darkfield Metallurgical Microscopes
- Full Brightfield/Darkfield Illumination: Provides both reflected and transmitted lighting for complete versatility across transparent and opaque specimens.
- High-Power 100 W Halogen Source: Ensures even, color-accurate illumination with precision light control and LWD condenser for thin-film observation.
- Plan S-APO BD Objectives (5×–50×): Delivers flat-field accuracy, superior contrast, and high-resolution imaging for detailed material analysis.
- Motorized Z-Axis with 3D Profiler: Enables automated depth mapping and surface topography for advanced inspection workflows.
- Motic Analysis Professional Software: Supports 3D visualization, rendering, and quantitative x/y/z measurements for research and industrial QA.
- Integrated 6.3 MP sCMOS Camera: Captures high-definition images and videos for documentation, reporting, and presentation.
- DIC-Compatible Coded Nosepiece: Ready for differential-interference contrast upgrades to enhance surface and coating evaluation.
- Optimized for Industrial and Research Applications: Ideal for metallography, materials science, thin-film analysis, and failure-inspection workflows.
The Motic PA53MET-BD Series represents the highest tier of industrial, metallurgical, and surface metrology microscopes, integrating Brightfield/Darkfield reflected illumination with modular options for transmitted light and 3D surface profiling.
Built on Motic’s CCIS® Infinity Optical System and Plan S-APO BD objectives, each model delivers ultra-sharp, true-color imaging with exceptional surface contrast for analyzing metals, coatings, films, and composites.
PA53MET-BD – Standard Brightfield/Darkfield reflected illumination for surface inspection, defect analysis, and metallography.
PA53MET-BD-T – Adds transmitted illumination, offering maximum versatility for both opaque and translucent specimens.
PA53MET-BD-3D – Combines BF/DF reflected light with 3D profiling capability and motorized Z-axis for quantitative surface metrology.
PA53MET-BD-T-3D – The flagship model integrating reflected, transmitted, and 3D imaging in one fully motorized platform — ideal for R&D, precision inspection, and advanced materials research.
Each configuration features a 100 W halogen light source, precision mechanical stage, and Motic Analysis Professional Software for sub-micron x/y/z measurement, 3D reconstruction, and report generation.
From routine metallographic inspection to advanced 3D surface mapping, the PA53MET-BD Series delivers unmatched optical performance, digital integration, and industrial-grade reliability.
