Motic PA53 BIO Trinocular Microscope – CCIS® Infinity Optical System, 100W Halogen Illumination | Clinical & Advanced Research-Grade Compound Microscope
Motic PA53 BIO Trinocular Microscope – CCIS® Infinity Optical System, 100W Halogen Illumination | Clinical & Advanced Research-Grade Compound Microscope
- Advanced CCIS® Infinity-Corrected Optical System: Ensures exceptional resolution, contrast, and color accuracy for research and laboratory imaging.
- Wide-Field 10X Eyepieces (23–25mm): Provide expansive, diopter-adjustable viewing comfort ideal for extended observation and digital imaging.
- Professional Plan UC Objectives (4X–100X Oil): Offer superior flat-field clarity and high light transmission for brightfield and fluorescence microscopy.
- Precision Rackless Mechanical Stage (220×170mm): Smooth, stable slide control with ergonomic low-position operation for accurate specimen handling.
- 100W Halogen Koehler Illumination: Delivers consistent, bright lighting with ECO mode for heat control and energy efficiency during long sessions.
- Coded Quintuple Nosepiece: Automatically recognizes objective changes for seamless workflow and optimized optical performance.

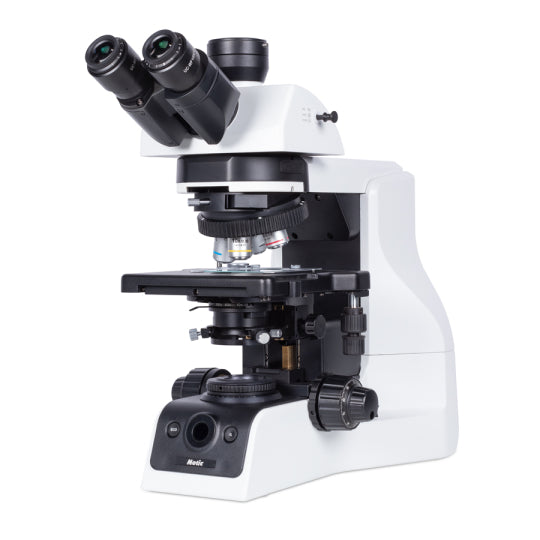

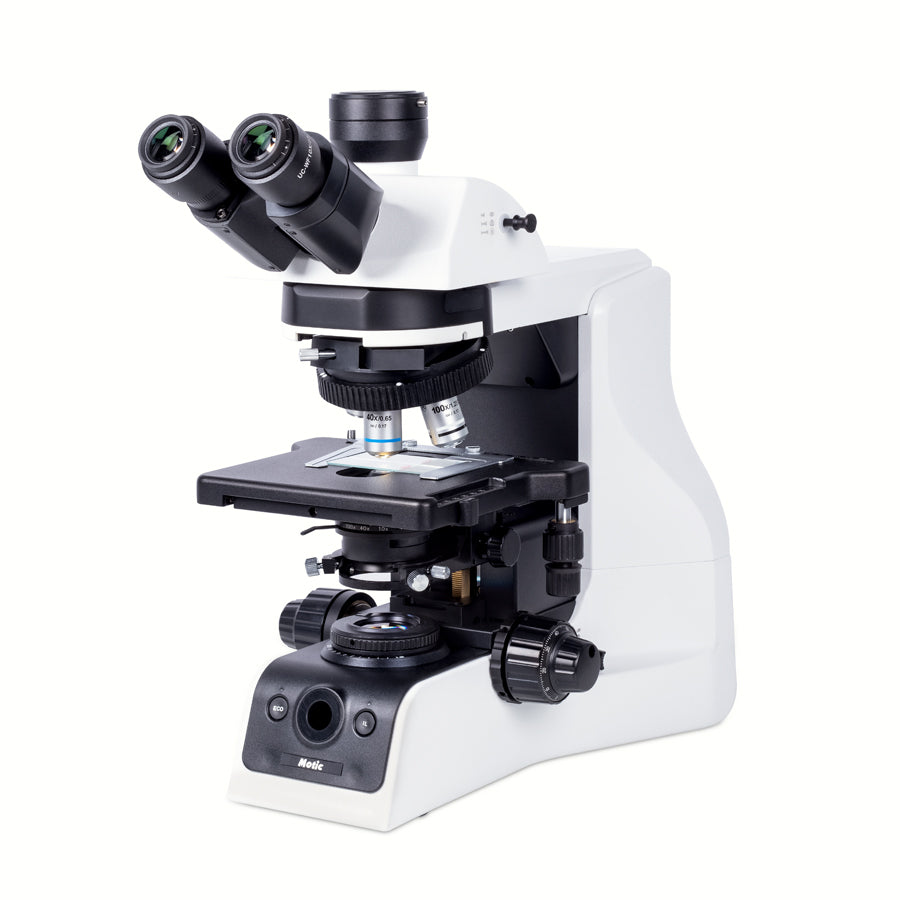

The Motic PA53 BIO Trinocular Microscope is a professional-grade optical instrument built for clinical, educational, and advanced research laboratories. Designed to deliver unmatched precision, ergonomic comfort, and imaging versatility, it integrates Motic’s CCIS® (Color Corrected Infinity Optical System) to produce bright, high-contrast, and distortion-free images across all magnifications.
Available in Low-End and High-End Fluor Objective Configurations, the PA53 BIO adapts to both routine and advanced research workflows:
The Low-End Configuration provides reliable performance for clinical, university, and life-science applications, offering smooth operation, rackless stage movement, and brilliant 100W halogen full Koehler illumination for uniform, heat-controlled lighting.
The High-End Configuration features Plan UC Fluor objectives, delivering research-grade color fidelity, enhanced contrast, and exceptional resolution ideal for pathology, cytology, and biomedical research.
Both configurations include a trinocular Siedentopf head supporting digital camera integration for documentation and live imaging, as well as wide-field 10X/25mm eyepieces, coded quintuple nosepiece, and precision-engineered coaxial focus controls.
Whether used for diagnostic microscopy or advanced fluorescence and cell biology studies, the Motic PA53 BIO offers the perfect balance of performance, flexibility, and durability — making it a trusted instrument for professional and academic environments alike.
