Motic B1-252ASC & B1-253ASC Educational Microscopes – Binocular & Trinocular Models with LED Illumination, Finite Optical System, and Achromatic Super Contrast Optics for Biology & Medical Labs
Motic B1-252ASC & B1-253ASC Educational Microscopes – Binocular & Trinocular Models with LED Illumination, Finite Optical System, and Achromatic Super Contrast Optics for Biology & Medical Labs
- Advanced Optical Clarity: Finite 160mm optical system with Semi-Plan Achromatic SP objectives (4X–100X) delivers sharp, distortion-free imaging and superior contrast.
- Digital-Ready Trinocular Viewing Head: 30° inclined, 360° rotatable head supports camera integration for live demonstrations, image capture, and teaching applications.
- Ergonomic Design for Comfort: Adjustable diopters and 55–75mm interpupillary range ensure strain-free viewing during extended lab sessions.
- Precision Focusing System: Coaxial coarse and fine focus controls with 2 μm fine-focus precision and adjustable stop limit for accurate specimen control.
- Durable Rackless Mechanical Stage: Built-in low-position coaxial X-Y stage (76×40 mm travel) provides smooth, stable slide movement and secure specimen handling.
- High-Intensity LED Illumination: 3 W adjustable LED lighting offers long-lasting, cool, uniform brightness for all magnifications while minimizing heat exposure.
The Motic B1-252ASC and B1-253ASC Educational Microscopes deliver precision optics, robust construction, and exceptional image quality—making them ideal for university classrooms, research institutions, and medical training environments. Designed for durability and ease of use, these microscopes combine achromatic super contrast or semi-plan achromatic optics with a finite optical system (160 mm) for bright, sharp, and color-accurate imaging across all magnifications.

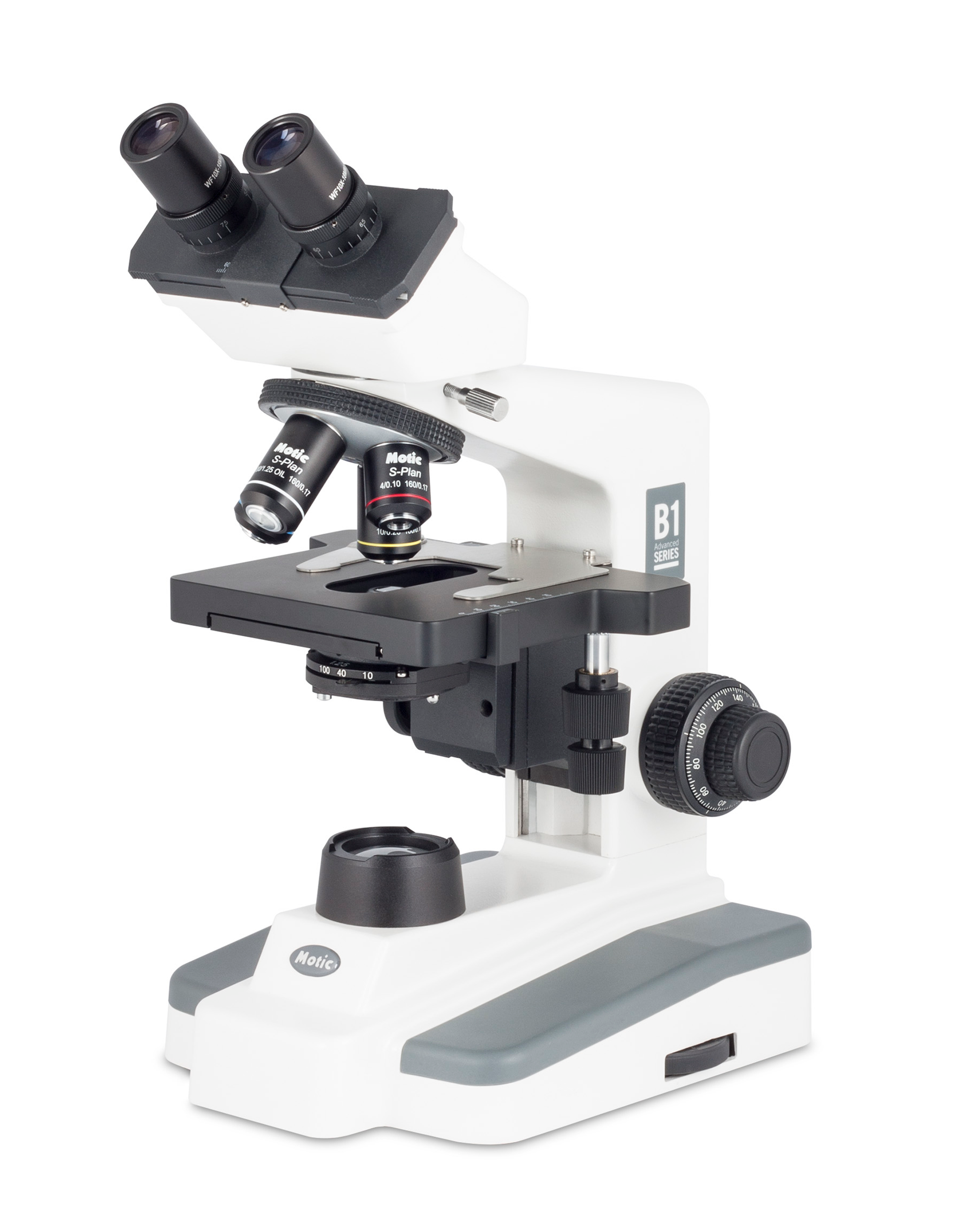

The B1-252ASC Binocular Model features achromatic super contrast objectives (4X, 10X, 40XR, 100XR oil immersion) and a 45° inclined, 360° rotating binocular head, providing ergonomic comfort during extended use. Its rackless mechanical stage with low-position coaxial controls allows smooth slide navigation and minimal maintenance. The 3W LED illumination system ensures bright, uniform lighting for clear visualization of specimens from 40X to 1000X magnification.

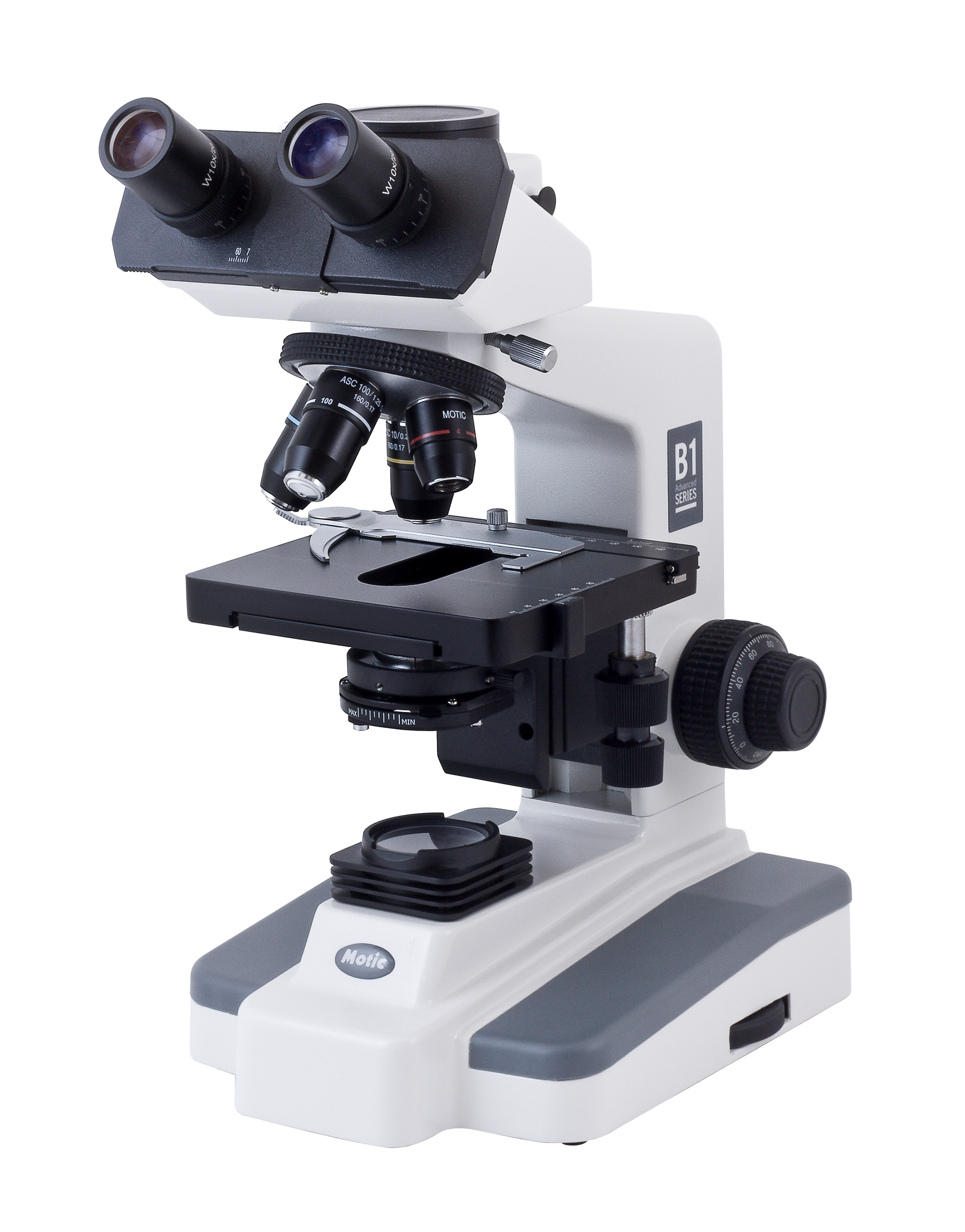

The B1-253ASC Trinocular Model expands functionality with a trinocular head for digital integration, allowing connection to cameras or monitors for image capture, live projection, or classroom demonstration. Equipped with semi-plan achromatic objectives, this model provides enhanced flatness of field and higher resolution—perfect for biology, histology, and microbiology instruction.
Both models feature energy-efficient LED illumination with intensity control, an Abbe condenser (1.25 N.A.), and a sturdy all-metal frame for long-lasting classroom and lab performance. Combining optical precision, ergonomic design, and professional reliability, the Motic B1-252ASC/B1-253ASC Series is the preferred choice for educators, students, and researchers seeking dependable microscopy for advanced biological studies.
