Motic B1 Series Educational Microscopes – Binocular & Trinocular Models, Semi-Plan Achromatic Objectives, LED Illumination, Rackless Mechanical Stage (B1-252SP / B1-253SP)
Motic B1 Series Educational Microscopes – Binocular & Trinocular Models, Semi-Plan Achromatic Objectives, LED Illumination, Rackless Mechanical Stage (B1-252SP / B1-253SP)
- • High-Performance Optical System: Semi-Plan Achromatic objectives (4X, 10X, 40X, 100X oil) deliver flat, color-accurate, and high-contrast images up to 1000X magnification.
- • Ergonomic Viewing Head: 30°–45° inclined, 360° rotatable binocular or trinocular head with dual diopter adjustment ensures comfortable, fatigue-free use.
- • Precision Rackless Mechanical Stage: Smooth ball-bearing movement with a 76×40mm X-Y travel range for precise specimen positioning.
- • Coaxial Fine Focusing System: Fine focus precision of 2 μm allows accurate depth control during high-power observation.
- • Energy-Efficient LED Illumination: 3W LED with adjustable brightness provides cool, consistent lighting for extended lab sessions.
- • Durable & Education-Ready Design: Sturdy metal frame and ergonomic layout built for classrooms, research, and clinical environments.
The Motic B1-252SP and B1-253SP Educational Microscopes are precision-built instruments designed for biology, medical, and general science education in secondary schools, universities, and laboratory training environments. Combining professional optical performance with classroom-ready durability, the B1 Series delivers reliable results for routine observation, teaching demonstrations, and introductory research.
Both models feature Semi-Plan Achromatic SP objectives (4X, 10X, 40X, 100X oil immersion) and a finite 160 mm optical system, producing flat-field, high-contrast images with accurate color reproduction up to 1000X magnification. A rackless mechanical stage with smooth ball-bearing movement allows precise specimen positioning while minimizing exposed components for safer classroom use.

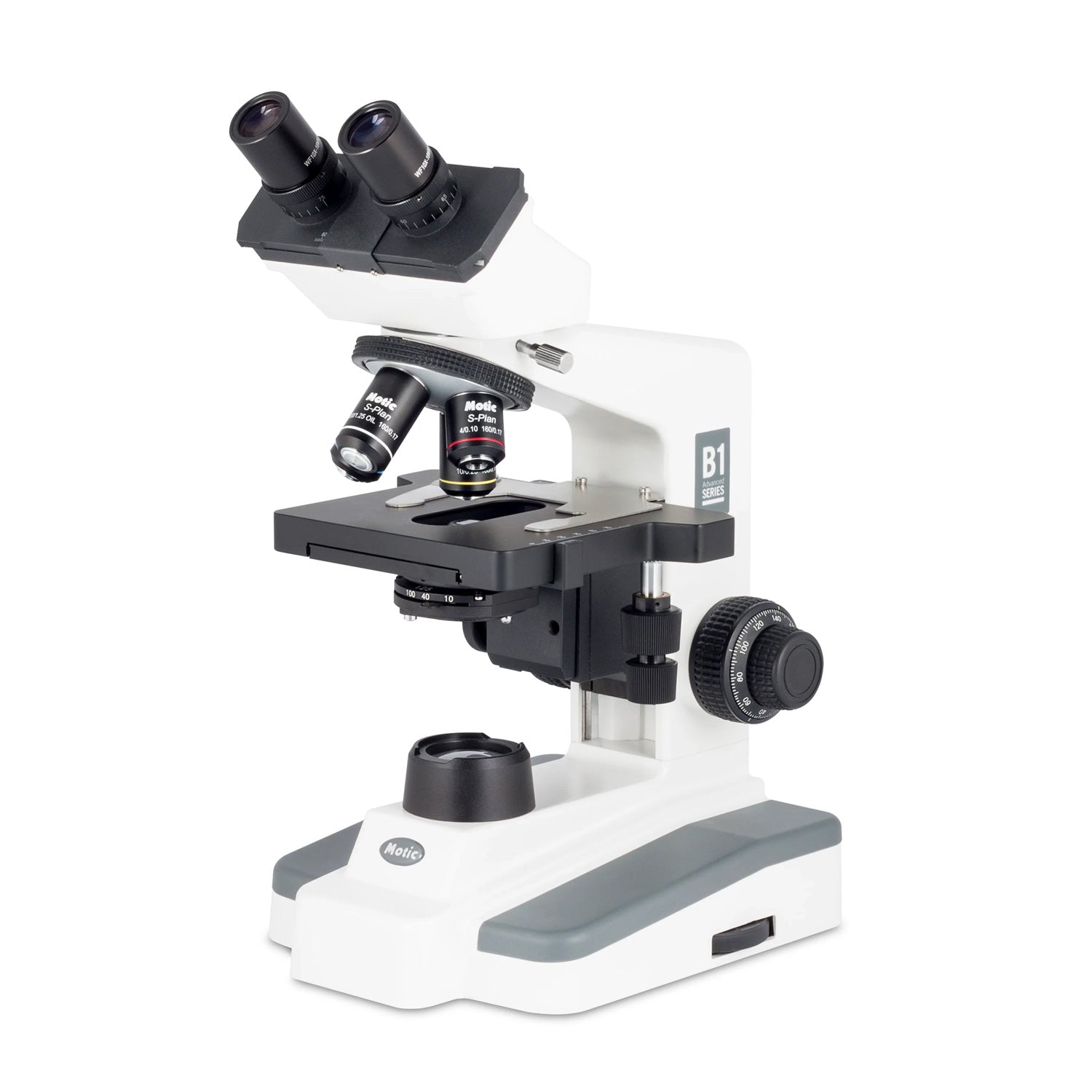

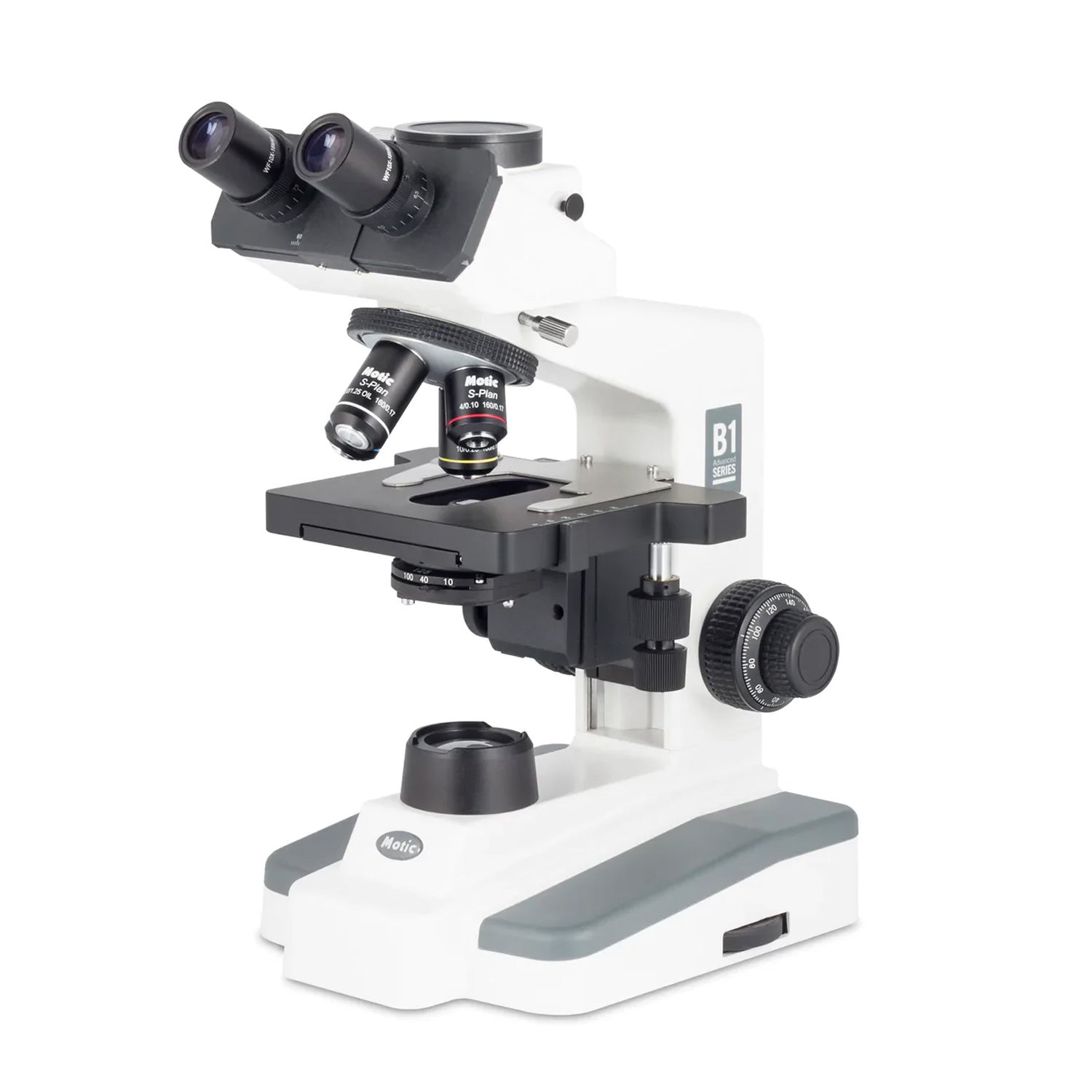

The B1-252SP Binocular Microscope is equipped with a comfortable 45° inclined, 360° rotatable binocular head and widefield 10X/18 mm eyepieces, supporting extended viewing sessions with reduced user fatigue. The B1-253SP Trinocular Microscope adds a dedicated trinocular port for digital camera integration, making it ideal for live viewing, documentation, and instructional projection.
Both microscopes include energy-efficient 3W LED illumination, a 1.25 N.A. Abbe condenser, and a coaxial coarse/fine focusing system with 2 μm precision, ensuring accurate depth control at higher magnifications. Built on a rugged all-metal frame, the Motic B1 Series is engineered for consistent performance in demanding academic and training environments.
